Autopilot Control Unit (ACU)

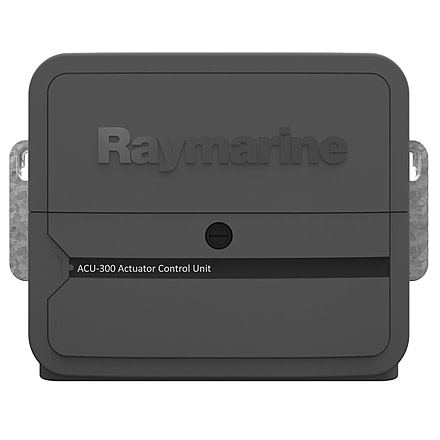

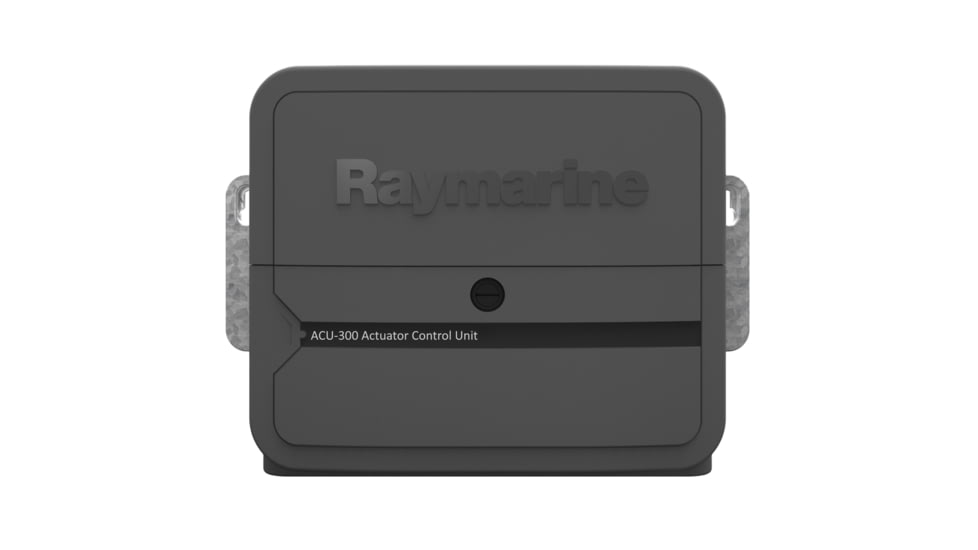

The rugged ACU (Actuator Control Unit) delivers reliable autopilot drive power and also provides power to the SeaTalkng bus. Choose the ACU that fits your steering system type.

Drive Current Output

Maximum continuous 5 Amps at supply voltage

Drive Clutch Output

No clutch connection

Connections

Includes the M81105 Rotary Rudder ReferenceSleep switch

Power

Solenoid drive out / return

Ground

Nominal supply voltage

12 V or 24 V

Operating voltage range

10.8V to 31.2V dc

Power Consumption (standby) - Main Power Supply

300 mA (12/24V)

Power Consumption (standby) - SeaTalkng Power Supply

20 mA (12V)

SeaTalkng LEN (Load Equivalency Number)

1

SeaTalkng Power Out

3 Amp at 12V (fuse protected at 3 Amp)

Data Connections

SeaTalkng

Installation Environment

Operating Temperature: -20C to +55C (-4F to +131F)

Storage Temperature: -30C to +70C (-22F to +158F)

Relative Humidity: MAX 93%

Waterproof rating

Drip resistant

Dimensions (W x H x D)

285mm x 211.5mm x 64.5mm (11.2 in x 8.3 in x 2.5 in)

Weight

2.2kg (4.84lbs)

Conformance

Europe: 2004/108/EC

Australia and New Zealand: C-Tick Compliance Level 2

Specifications for Raymarine ACU-300 Actuator Control Unit f/Solenoid Contolled Steering Systems & Constant Running Hydraulic Pumps:

Package Contents:

• Raymarine ACU-300 Actuator Control Unit f/Solenoid Contolled Steering Systems & Constant Running Hydraulic Pumps
