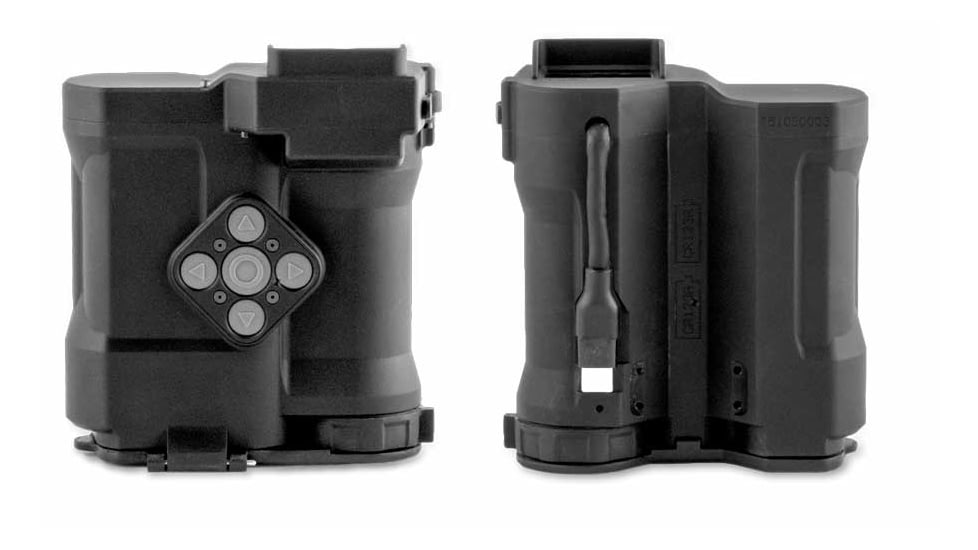

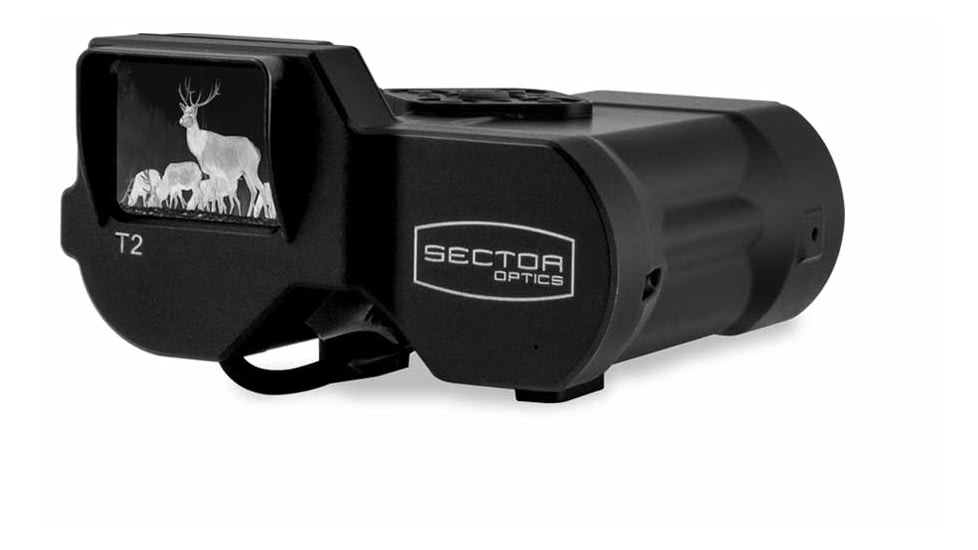

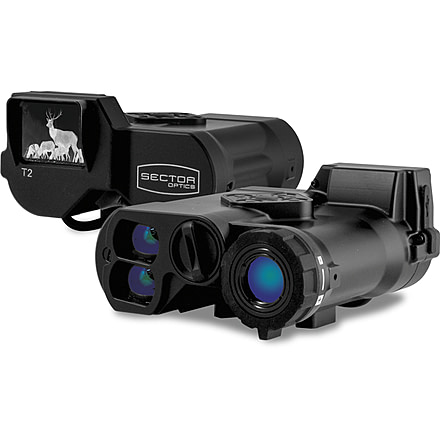

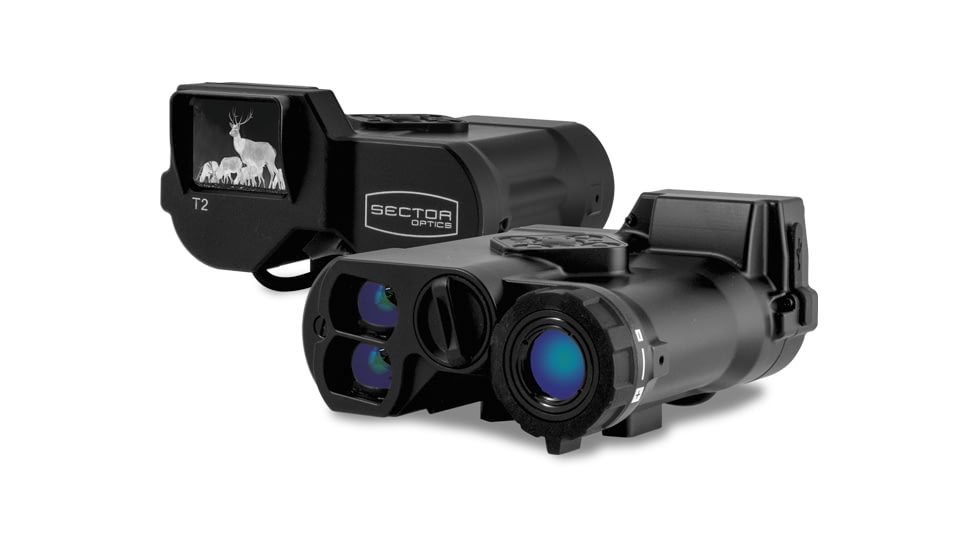

Product Info for Sector Optics T2 System Thermal Imager w/ Rangefinder

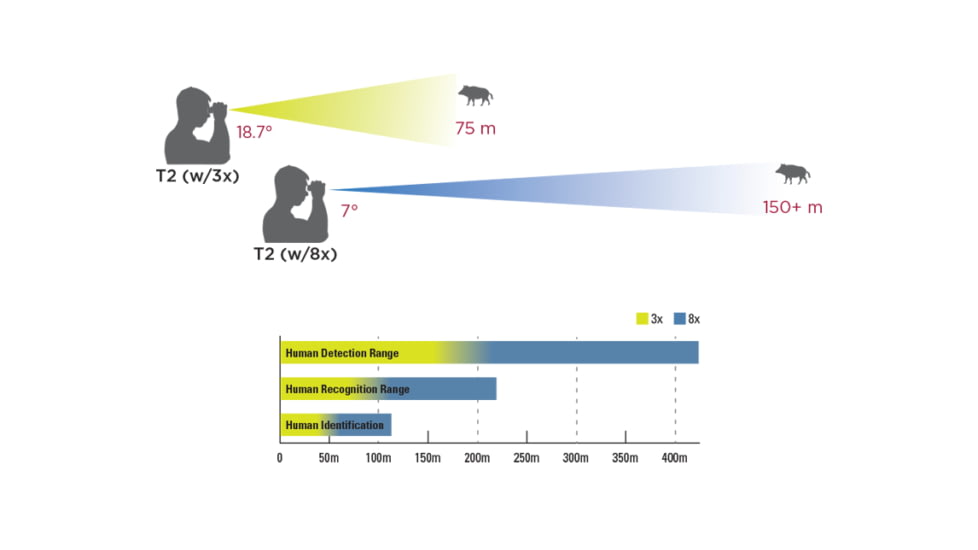

These Optics have a 3x to 8x zoom, providing an 18.7 to 7-degree field of view, and the focus range is 2 yards to infinity. The rangefinder operates out to 1,000 meters under ideal conditions and is a 905nm Class 1 laser. You can capture images with the T2 optic, and change the modes for image processing enhancement depending on your needs. Sector Optics has designed the T2 System Thermal Imager w/ Rangefinder to be handheld or able to be mounted on tripod. Using two CR123 or two RCR123 (rechargeable) batteries the continuous runtime is up to 8 hours and up to 10 hours with one 18650 (rechargeable) battery. It's hardy, too, able to operate from 15 to 115 degrees F and is IP66 water-rated. The Sector Optics T2 System Thermal Imager w/ Rangefinder includes a USB port with power input and software updates.
Specifications for Sector Optics T2 System Thermal Imager w/ Rangefinder:
| Manufacturer: | Sector Optics |
| Color: | Black |
| Magnification: | 3 - 8 x |
| Objective Lens Diameter: | 15 mm |
| Sensor Resolution: | 160x120 pixels |
| Display Resolution: | 160x128 pixels |
| Refresh Rate: | 9 Hz |
| Frame Rate: | 9 Hz |
| Resolution: | 120x160 pixels |
| Range of Detection: | 300 m |
| Minimum Focus Distance: | 2 m |
| Battery Type: | 18650, CR123 |
| Battery Quantity: | 2 |
| Battery Life: | 8 hours |
| Water Resistance Level: | IP67 |
| Length: | 4.25 in |
| Width: | 3.78 in |
| Height: | 1.93 in |
| Weight: | 14 oz, 0.9 lb |
| Included Accessories: | Standard |
| Condition: | Factory DEMO |
| Condition Quality: | Like New |
| Condition Details: | Open Box |
| Operating Temperature: | 15 - 115 Fahrenheit |
| Magnification Type: | Variable |
| Field of View, Angle: | 18.7 - 7 degrees |
| Wavelength: | 905 nm |
Features of Sector Optics T2 System Thermal Imager w/ Rangefinder
- Real optical 3-8x zoom on thermal imager
- On-board image processing enhancement modes
- Video and still on-board recording
- USB port with power input and software updates
- 2x CR123 or 1x 18650 rechargeable battery
- 1000meter LRF module with full controls
- First system to use ID embedded display technology
Package Contents:
- Sector Optics T2 System Thermal Imager w/ Rangefinder
