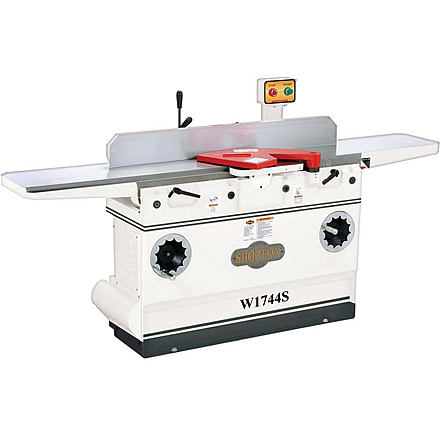

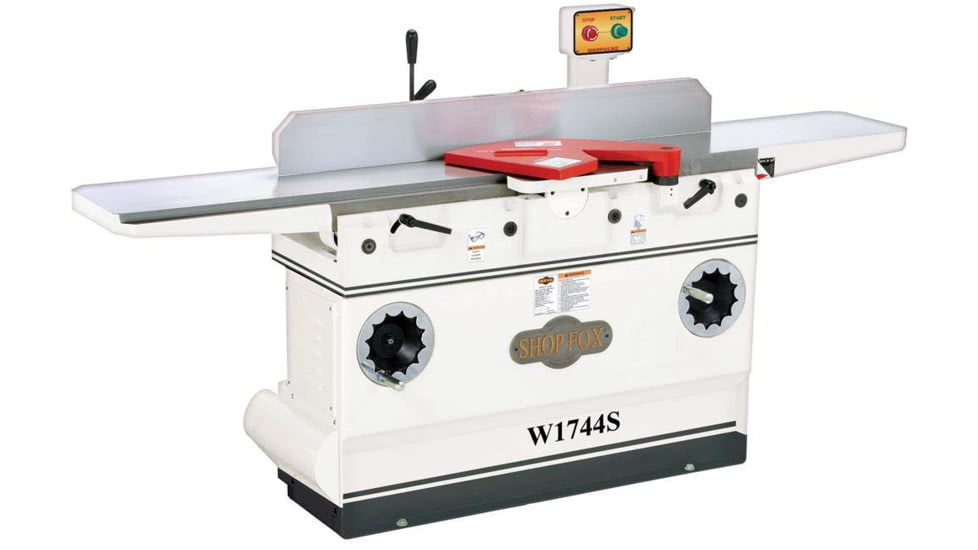

Shop Fox 12in Heavy-Duty Jointer with Adjustable Beds and Spiral Cutterhead W1744H,

With its big cast-iron fence, 83in long table and 12in cutting width, this large-capacity Jointer makes edge-jointing and face-planing a breeze. Its parallelogram table adjustment design ensures tables stay perfectly aligned with each other throughout their vertical range and a half-ton of cast-iron mass dampens any motor vibration for perfect results every time.

Features of Shop Fox 12in Heavy-Duty Jointer with Adjustable Beds and Spiral Cutterhead

• 5.3/8in Tall Fence

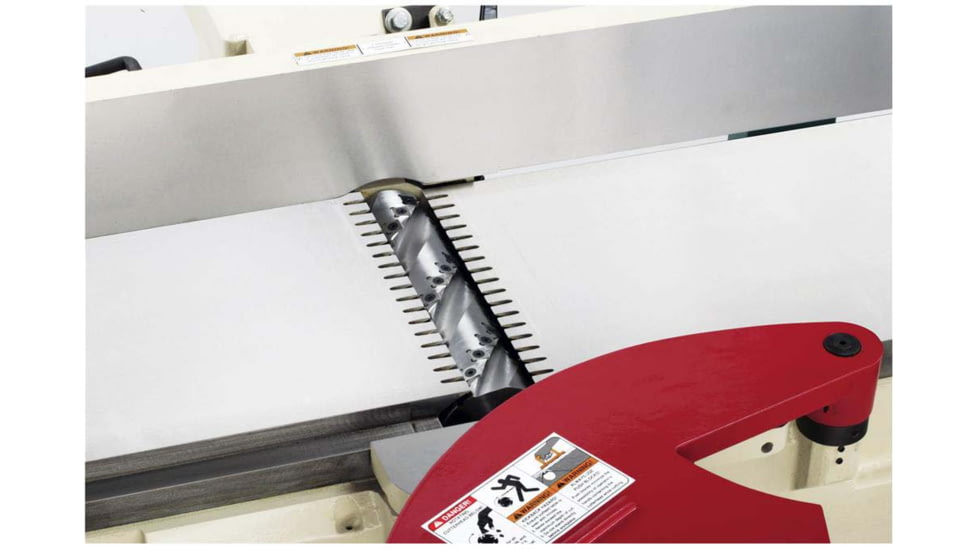

• Helical Cutterhead with 96 Indexable Carbide Inserts
• 3 HP Motor
• Easy-to-Reach Pedestal-Mounted Control Panel
• Parallelogram Table Design Allows for Full Adjustability and Calibration
• Sturdy Cabinet Stand
• Handwheel Controlled Table Movement
• Motor: 3 HP, 240V, single-phase, 3450 RPM, 15A
• Table size: 13 x 83 inches
• Deluxe cast-iron fence size: 47 x 5.37 inches
• Cutterhead diameter: 3.75in
• Carbide inserts: 96
• Cuts per minute: 19,800
• Cutterhead speed: 4300 RPM
• Max. depth of cut: 0.125in
• Max. rabbeting depth: 0.75in
• Max. width of cut: 12in
• Magnetic switch with thermal-overload protection
• Shielded & lubricated bearings
• Parallelogram design, precision-ground cast-iron tables
• Fully adjustable tables
• Poly-V belt drive
• Easy access lever-adjustable tables with height gauge
• Heavy-duty center mounted fence with angle gauge
• Built-in dust chute with 4in port
• Large recessed handwheels

Package Contents:

• Shop Fox 12in Heavy-Duty Jointer with Adjustable Beds and Spiral Cutterhead
• 2 Push Blocks
• 2 Torx T-20 L-Wrenches and Bits
• 5 Replacement Cutterhead Inserts
• 3 Flat Head M6-1 x 15 Torx Screws
