Product Discontinued by Manufacturer
Shop Fox 20in Planer with Built-in Mobile Base and Spiral Cutterhead has been discontinued by Shop Fox and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Camp & Hike yourself to try and find the perfect replacement for you!

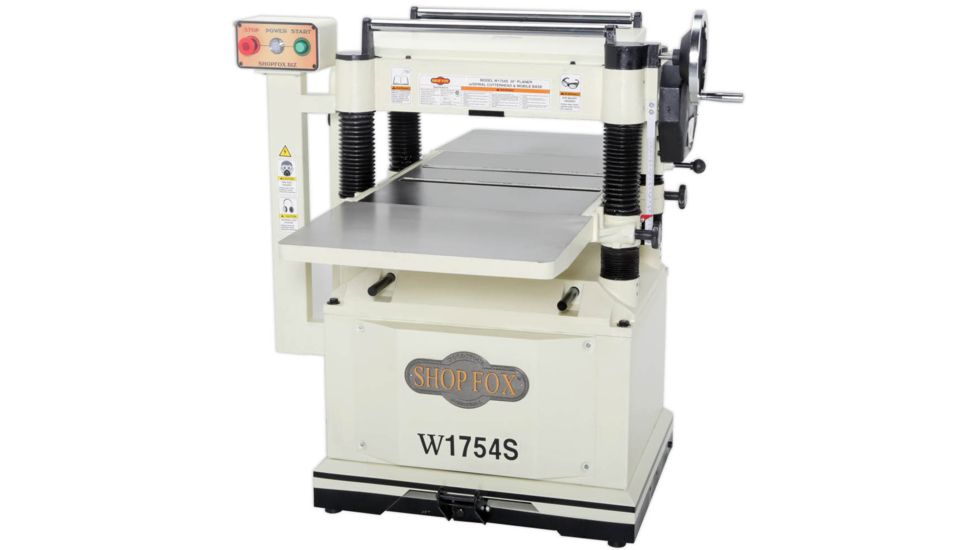

Product Info for Shop Fox 20in Planer with Built-in Mobile Base and Spiral Cutterhead

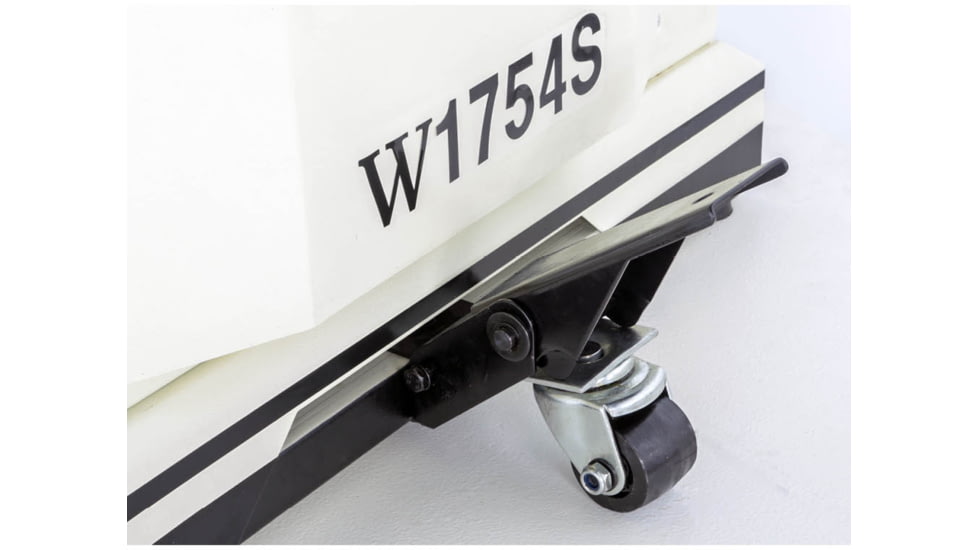

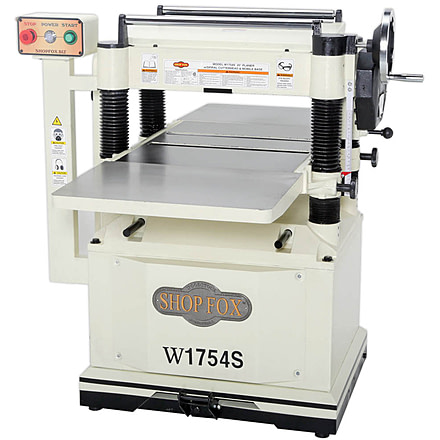

With its built-in locking mobile base and pedestal-mounted switch, the Shop Fox 20in Planer with Built-in Mobile Base and Spiral Cutterhead is easy to move and operate. Just press down on the lock lever with your foot and this planer is mobile. The standard features of the Shop Fox 20in Planer with Built-in Mobile Base and Spiral Cutterhead include a 55-5/8" long precision-ground cast-iron table with the cast-iron extension wings, two feed speeds, return rollers, a 20" x 8" capacity, adjustable bed rollers, magnetic switch with thermal overload protection, and a 5 HP motor. Certified to CSA and UL standards. Upgrade your Camp & Hike with this addition today!
Specifications for Shop Fox 20in Planer with Built-in Mobile Base and Spiral Cutterhead:
| Motor: | 5 HP, 240V, single-phase, 19A |
| Maximum cutting width: | 20in |
| Maximum cutting height: | 8in |
| Minimum stock thickness: | 3/16in |
| Minimum stock length: | 8in |
| Maximum cutting depth: | 1/8in |
| Feed rate: | 16 FPM & 20 FPM |
| Cutterhead type: | Spiral with German-made indexable carbide inserts |
| Cutterhead diameter: | 3-1/8in |
| Cutterhead speed: | 5000 RPM |
| Table size including wings: | 55-1/2in L x 21-1/2in W x 1-3/4in T |
| Overall dimensions: | 55-1/2in L x 43-1/2in W x 45-7/8in H |
| Approximate shipping weight: | 920 lbs. |
| Number of Indexable Inserts: | 98 |
Features of Shop Fox 20in Planer with Built-in Mobile Base and Spiral Cutterhead
- Motor: 5 HP, 240V, single-phase, 19A
- Maximum cutting width: 20"
- Maximum cutting height: 8"
- Minimum stock thickness: 3/16"
- Minimum stock length: 8"
- Maximum cutting depth: 1/8"
- Feed rate: 16 FPM & 20 FPM
- Cutterhead type: Spiral with German-made indexable carbide inserts
- Cutterhead diameter: 3-1/8"
- Cutterhead speed: 5000 RPM
- Table size including wings: 55-1/2"L x 21-1/2"W x 1-3/4"T
- Overall dimensions: 55-1/2"L x 43-1/2"W x 45-7/8"H

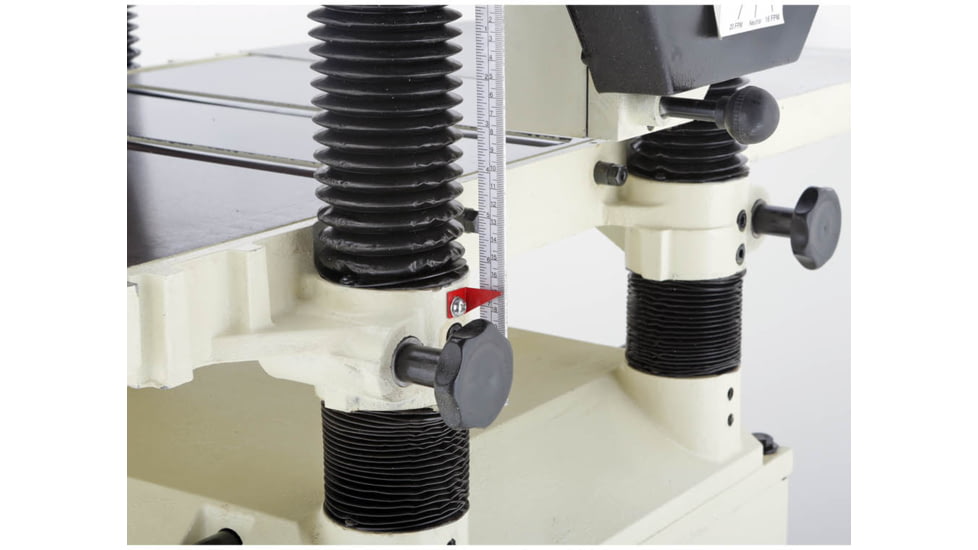

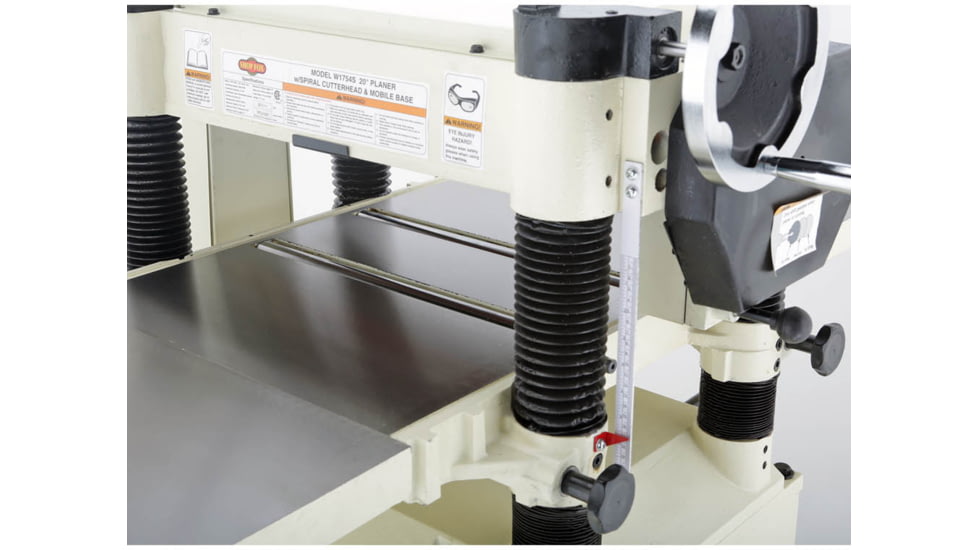

- Four column support with table locks

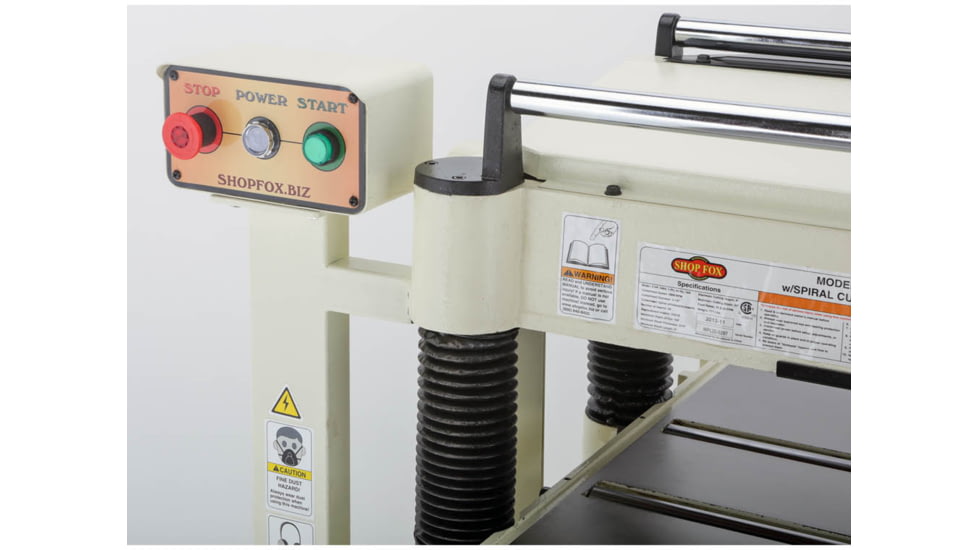

- Pedestal mounted magnetic safety switch w/ thermal protection
- Built-in mobile base
- Precision-ground cast-iron extension wings
- Approximate shipping weight: 920 lbs.
- Number of Indexable Inserts: 98
Package Contents:
- Shop Fox 20in Planer with Built-in Mobile Base and Spiral Cutterhead
Be the first to review this product
Shop Fox 20in Planer with Built-in Mobile Base and Spiral Cutterhead Unavailable & Discontinued Models
List of Unorderable Models
- Shop Fox 20in Planer, with Built-in Mobile Base and Spiral Cutterhead, W1754S , MPN: W1754H , UPC: 754001107540 , Code: 1SM-PWT-MBASC-W1754S
