Shop Fox 6in Jointer with Spiral Cutterhead W1755H,

This Shop Fox 6" Parallelogram Jointer is built like a tank and loaded with red-hot features like parallelogram tables, a 4-row helical cutterhead with indexable carbide inserts, and a built-in mobile base. The 120V, 1-1/2 HP motor makes this a real workhorse with a small footprint.

Features of Shop Fox 6in Jointer with Spiral Cutterhead

• Helical Cutterhead with 30 Indexable Carbide Inserts
• Built‐In Mobile Base
• 1‐1/2 HP MotorEasy‐to‐Reach Pedestal‐Mounted Control Panel

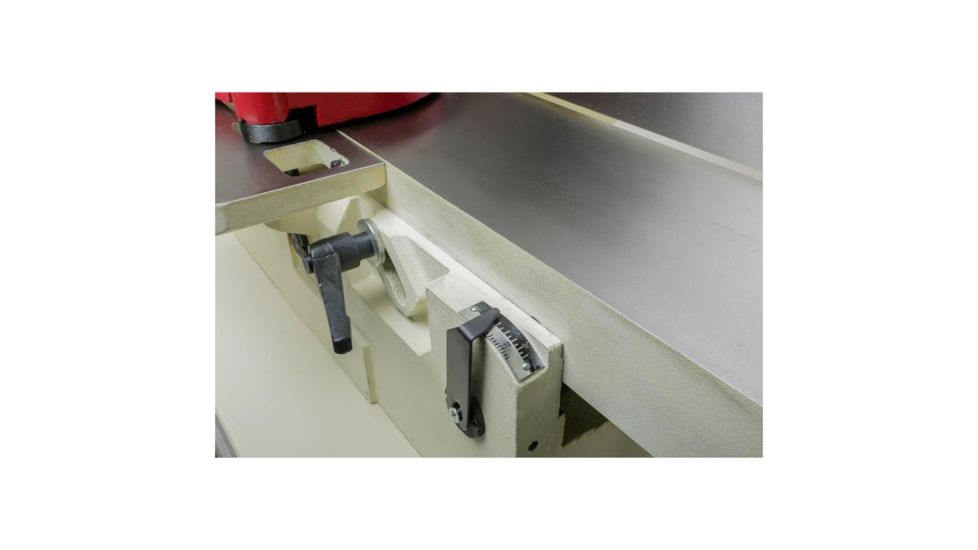

• Parallelogram Table Design Allows for Full Adjustability and Calibration
• 5in Tall Fence
• Sturdy Cabinet Stand
• Motor: 1.5 HP, 120V/240V, pre-wired 120V, single-phase, TEFC, 3450 RPM
• Amps: 15A/ 7.5A
• Precision ground cast iron table size: 55.5 x 6 inches
• Floor to table height: 32.5in
• Maximum depth of cut (per pass): 0.125in
• Maximum width of cut: 6in
• Rabbeting capacity: 0.5in
• Cutterhead type: Spiral with German-made indexable carbide inserts
• Cutterhead diameter: 3in
• Cutterhead speed: 4850 RPM
• Cuts per minute (effective): 19,400
• Power transfer: V-belt drive

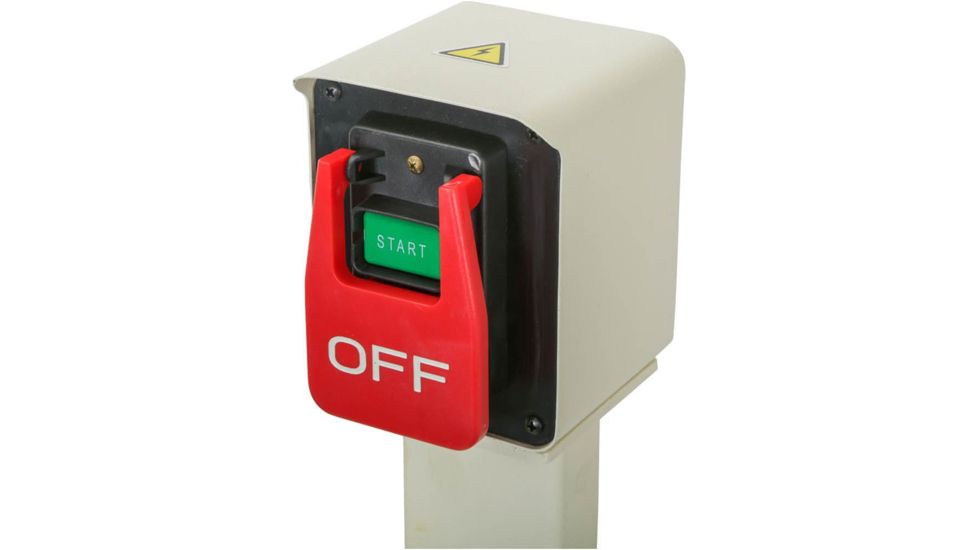

• Switch: standard push-button type switch with large off paddle for safety
• Fence system: positive stops ±45 and 90 Celcius
• Built-in mobile base
• Built-in 4" dust port
• Parellogram table design allows for full adjustability and calibration
• Easy-to-reach pedestal mounted control panel

Package Contents:

• Shop Fox 6in Jointer with Spiral Cutterhead
