Product Discontinued by Manufacturer

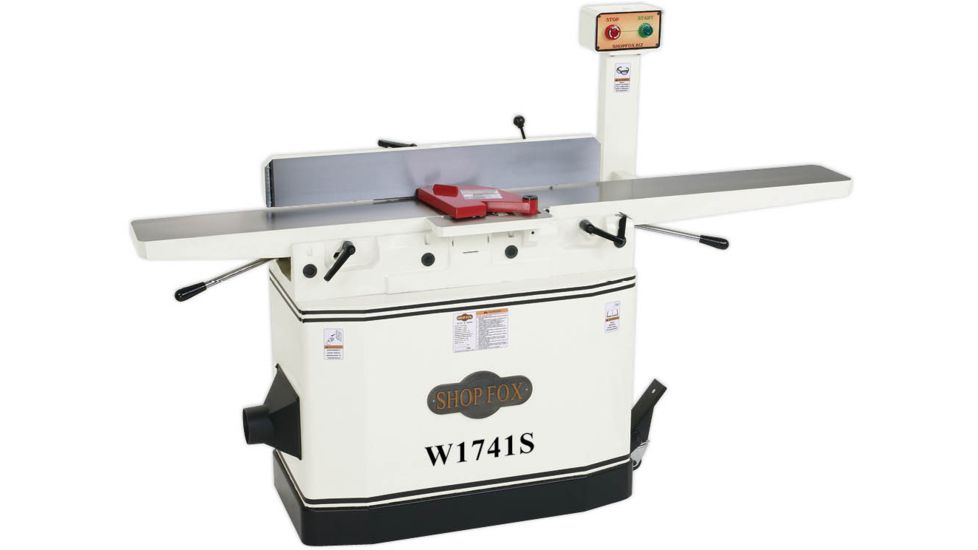

Shop Fox 8in Jointer with Adjustable Beds and Spiral Cutterhead has been discontinued by Shop Fox and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Camp & Hike yourself to try and find the perfect replacement for you!
Product Info for Shop Fox 8in Jointer with Adjustable Beds and Spiral Cutterhead
If you set out to design a full featured 8" Jointer, you couldn't do any better than this. We started with a 3 HP motor and added a precision parallelogram table adjustment mechanism, extra-long infeed table, large cast-iron center-mounted fence, pedestal-mounted switch and a built-in locking mobile base. Check out the other features and you'll agree! Certified to CSA and UL standards.
Specifications for Shop Fox 8in Jointer with Adjustable Beds and Spiral Cutterhead:
| Motor: | 3 HP, 240V, single-phase, TEFC, 3450 RPM |
| Switch: | magnetic w/thermal-overload protection |
| Deluxe cast iron fence size: | 36in L x 1-1/4in W x 5in T |
| Table size: | 76-3/8in L x 8in W x 1-1/2in T |
| Cutterhead diameter: | 3-3/16in |

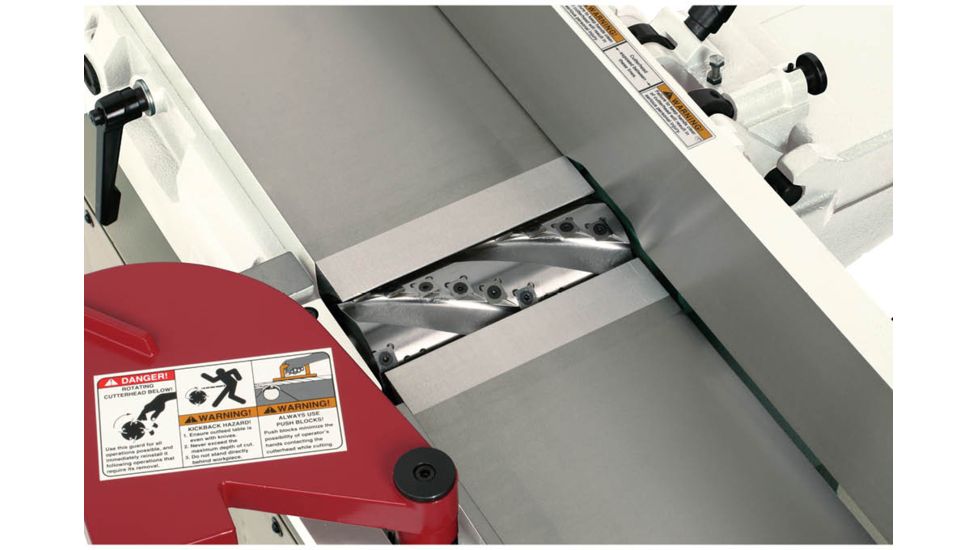

| Cutterhead type: | Spiral with German-made indexable carbide inserts |
| Cutterhead speed: | 5350 RPM |
| Max. depth of cut: | 1/8in |
| Max. rabbeting depth: | 5/8in |
| Max. width of cut: | 8in |
| Approximate shipping weight: | 600 lbs. |
Features of Shop Fox 8in Jointer with Adjustable Beds and Spiral Cutterhead:
- Shielded & lubricated bearings
- Precision-ground cast-iron table
- Parallelogram table design allows for full adjustability and calibration
- Built-in dust chute with 4in port
- Powder-coated finish
Package Contents:
- Shop Fox 8in Jointer with Adjustable Beds and Spiral Cutterhead

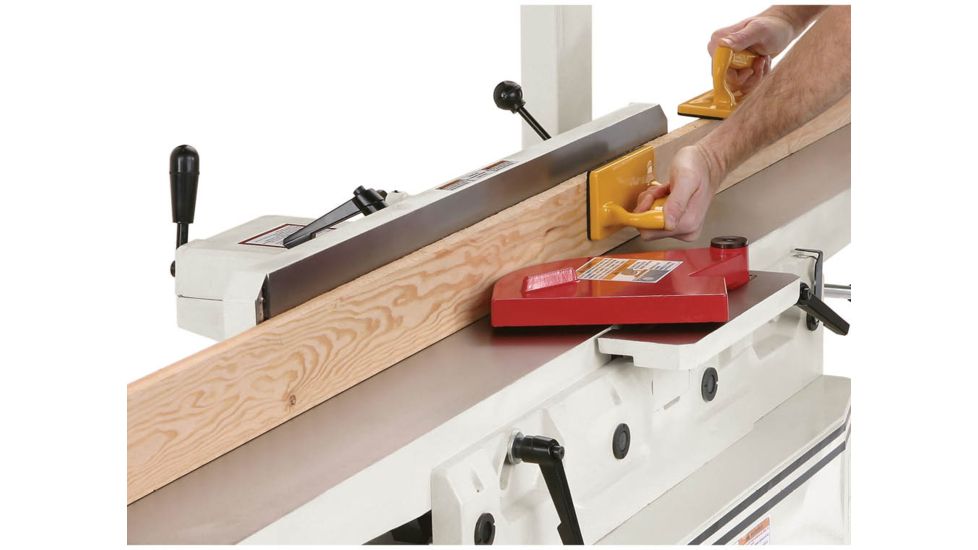

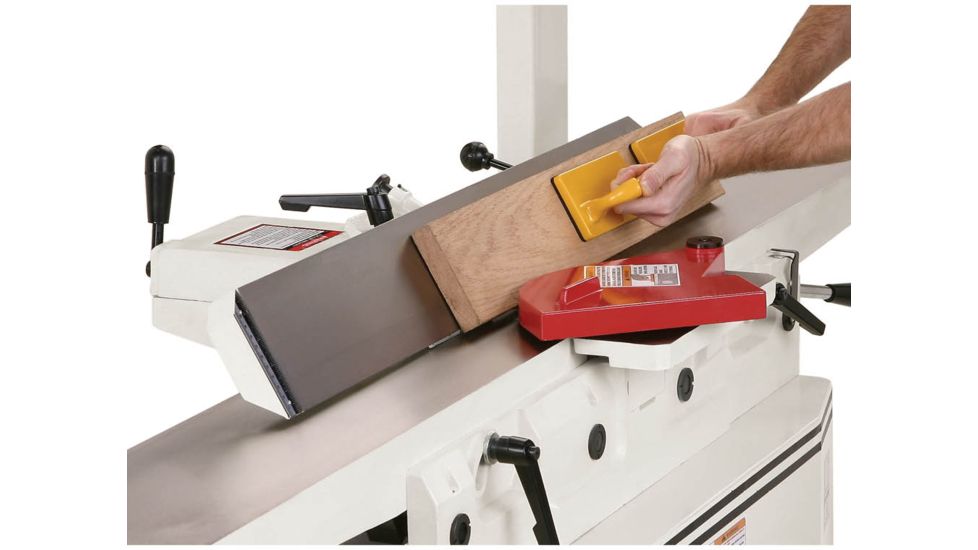

- Safety push blocks
Be the first to review this product
Shop Fox 8in Jointer with Adjustable Beds and Spiral Cutterhead Unavailable & Discontinued Models
List of Unorderable Models
- Shop Fox Jointer with Adjustable Beds and Spiral Cutterhead 8in, W1741S , MPN: W1741H , UPC: 754001107410 , Code: 1SM-PWT-SCAAB-W1741S
