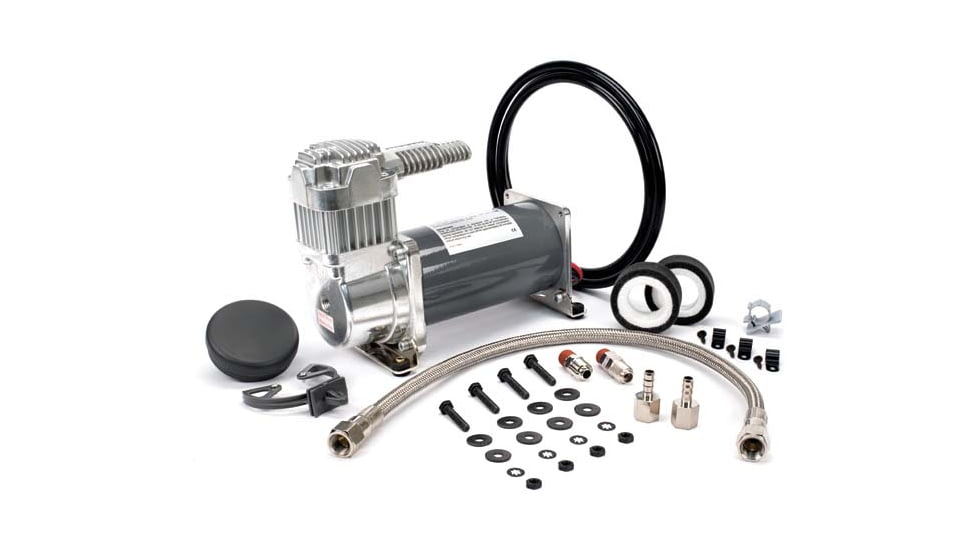

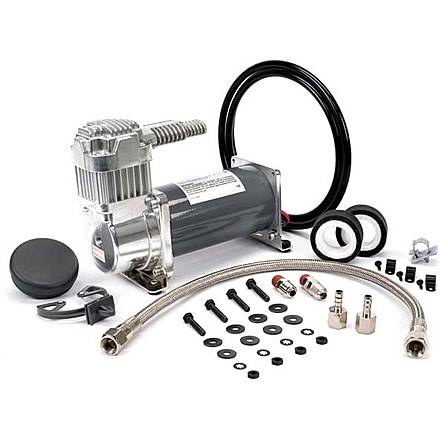

VIAIR 330C-IG Compressor ,

330C IG Series Compressor Kit, Intercooler Head, 100% Duty, Sealed. Industrial Grade (IG) compressors are specifically designed to fill air reservoir tanks and feature a head assembly that includes a newly-developed, patents pending innovative head design for better heat dissipation. All IG compressors are certified CE spec. and feature outstanding sealing properties to the elements. Additionally, all IG compressors are equipped with a separate stainless steel braided PTFE-lined leader hoses and check valve assembly that protects the compressor against high amperage restarts.

Features of VIAIR 330C-IG Compressor

• Thermal Overload Protector
• Vibration Isolators
• Mounting Hardware
• Heavy Duty 1/4? NPT Check Valve
• Stainless Steel Braided PTFE-Lined Leader Hose
• Air Line for Remote Mount Air Filter
• Remote Mount Air Filter Assembly
• (2) Replacement Air Filter Elements
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Air Tank Size: 5.0 Gallon
• Ingress Protection Rating: IP67
• Max. Ambient Temp: +158F
• Min. Ambient Temp: -40F

Package Contents:

• VIAIR 330C-IG Compressor
• Installation Instructions
