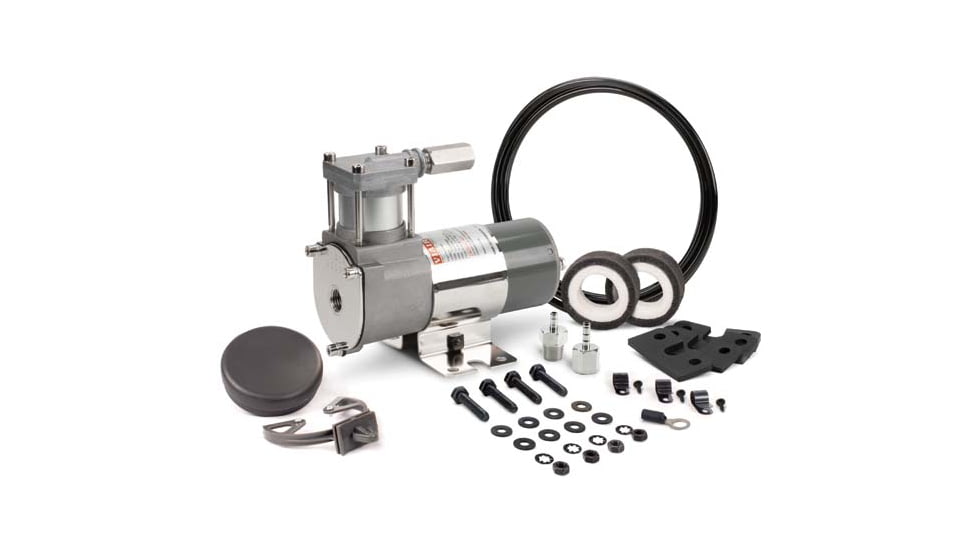

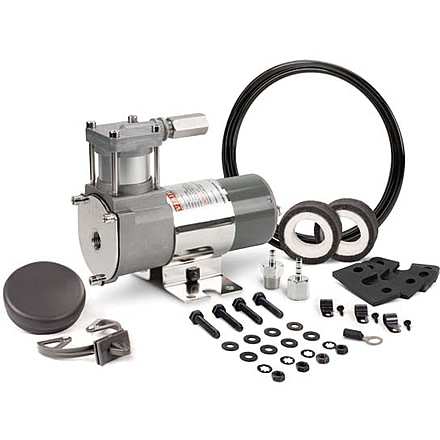

VIAIR 96C-IG Compressor ,

96C IG Series Compressor Kit w/ Omega Style Mounting Bracket, 10% Duty, IP54, CE, REACH, RoHS. Introducing VIAIRs compact 96C Industrial Grade (IG) series compressor available in 12V and 24V. This compressor offers a light-duty solution for small air requirements and is designed to fill no larger than a 1.0-gallon air tank. The 96C-IG features an adjustable Omega bracket for easy mounting in a tight space and a variety of orientations, an air filter relocation kit to allow unrestricted airflow, and an inline check valve that protects against high amperage restart. The 96C-IG compressors are CE Certified, RoHS and Reach Compliant. They also feature an ingress protection rating of IP54 and industry leading sealing properties for peace of mind in adverse environments.

Features of VIAIR 96C-IG Compressor

• Check Valve
• Vibration Isolators
• Mounting Hardware
• Permanent Magnetic Motor
• Duty Cycle: 10% @ 100 PSI
• Max. Working Pressure: 130 PSI
• Max. Air Tank Size: 1.0 Gallon
• Max. 12V Amp Draw: 13-Amps
• Max. 24V Amp Draw: 8-Amps
• Ingress Protection Rating: IP54

Package Contents:

• VIAIR 96C-IG Compressor
• Installation Instructions
