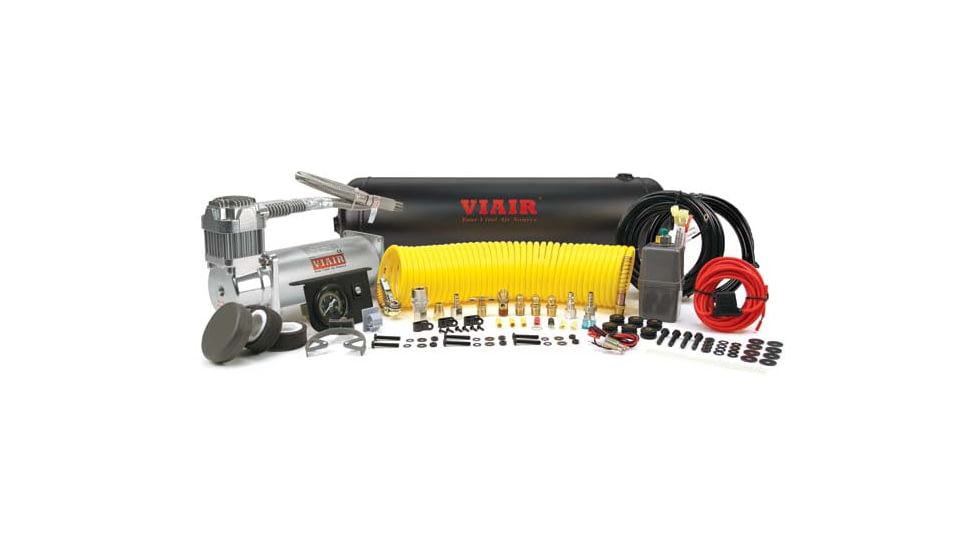

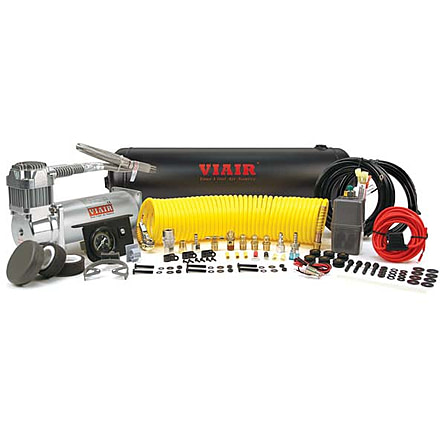

VIAIR Constant Duty Onboard Air System 10007,

Constant Duty Onboard Air System (12V, 150 PSI Compressor, 2.5 Gal. Tank). VIAIRs Constant Duty Onboard Air System is a pre-packaged compressed air solution that provides a 100% duty cycle compressors, a 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires.

Features of VIAIR Constant Duty Onboard Air System

• 2.5 Gallon VIAIR Air Tank
• 450C VIAIR Compressor w/Thermal Overload Protector
• 35ft. Coil Hose with Tire Chuck
• Dash Panel Gauge with ON/OFF Switch
• Pressure Switch with Relay (110 PSI on, 145 PSI off)
• Reducer: 1/8 (F) to 1/4 (M)
• 1/4 Quick Connect Stud (F)
• 1/4 Quick Connect Coupler (F)
• 1/4 175 PSI Safety Valve
• 1/4 Drain Cock
• (3) 1/4 Compression Fittings
• 20ft. 12-Gauge Wire with Inline Fuse Holder
• 4 Strip of Continuous Grommet Material
• Accessory Airline
• Electrical Connections
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 23-Amps
• Ingress Protection Rating: IP67

Package Contents:

• VIAIR Constant Duty Onboard Air System
