VIAIR Constant-Duty Universal Compressor 45055,

Constant Duty ADA System, Universal-Mount, w/Inflation Kit. Using a 100% (Constant Duty) duty cycle 450C compressor, tire inflation or air locker actuation is made possible in a very compact space. Each ADA System comes complete with an onboard pressure switch, automatic coupler and a Digital Tire Inflation Kit. Additionally, a wiring harness is included to make the installation a plug & play process, with very little install time required.

Features of VIAIR Constant-Duty Universal Compressor

• 450C Compressor w/Thermal Overload Protector
• Extruded Aluminum Air Tank (12-port)
• Toggle Switch
• Air Line for Remote Mount Air Filter Installation
• (2) Remote Mount Air Filter Relocation Fittings
• 1/8 NPT Drain Cock
• 1/4 NPT Safety Valve
• (8) 1/4 NPT Hex Plug
• 1/4 NPT Sealed Pressure Switch (85/105 PSI)
• (2) 1/4 NPT BSP Adapter
• 1/4 NPT Automatic Coupler
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 23-Amps
• Ingress Protection Rating: IP67

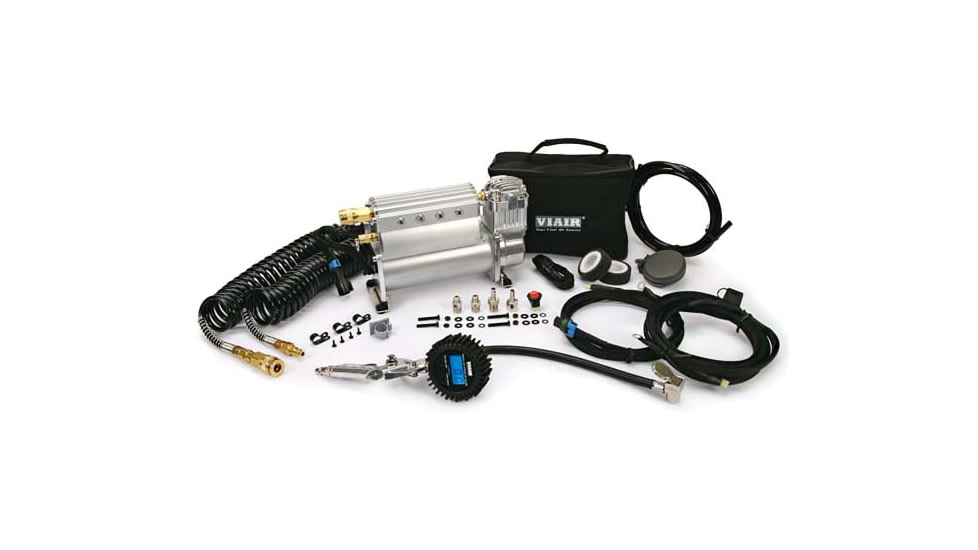

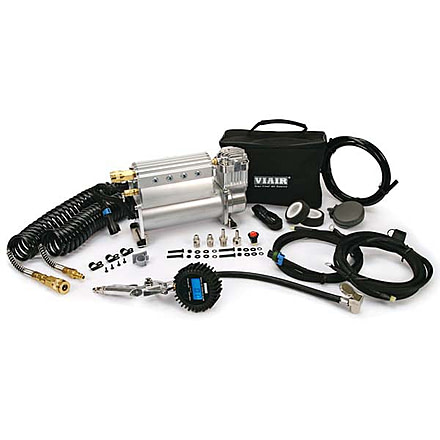

Package Contents:

• VIAIR Constant-Duty Universal Compressor
• 30-amp Delphi Connector Set
• 60-amp Fuse Holder
• 40-amp Fuse
• (2) 1/4 Ring Terminal
• 5/16 Ring Terminal
• (3) Female Spade Terminal Connector
• 30 Inflation Hose with Automatic Couplers
• Digital Tire Inflation Gun
