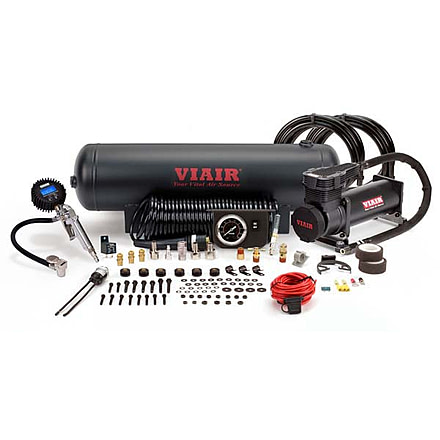

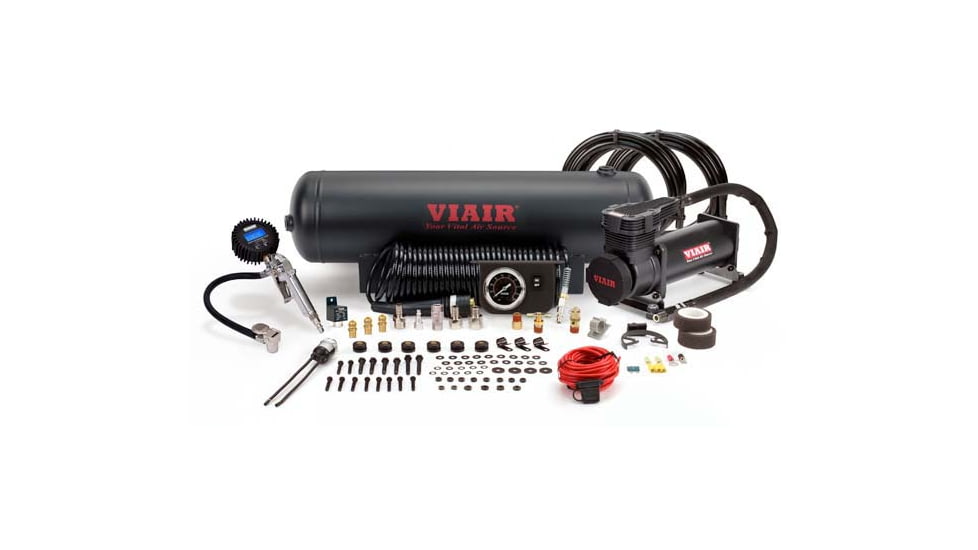

VIAIR Continuous Duty Onboard Air System 20002,

485C Stealth Black Gen 2 Onboard Air System (12V, 200 PSI Compressor, 2.5 Gal Tank). VIAIRs Continuous Duty Onboard Air System is a pre-packaged compressed air solution that provides an industry-leading, 200 PSI rated, 100% duty cycle 485C CE compressor, 2.5 gallon air tank, and all components needed to install a working system capable of inflating tires of virtually any size.

Features of VIAIR Continuous Duty Onboard Air System

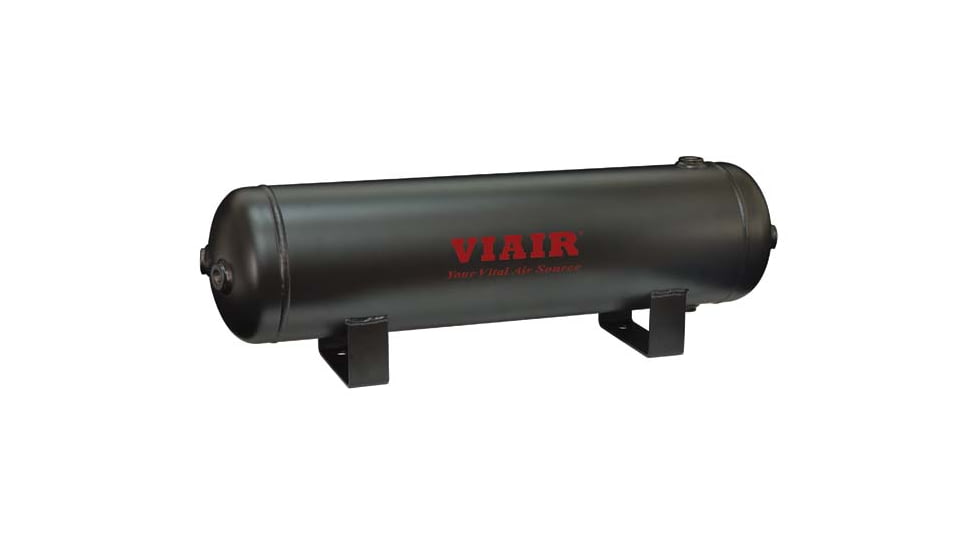

• 2.5 Gallon VIAIR Air Tank (200 PSI)

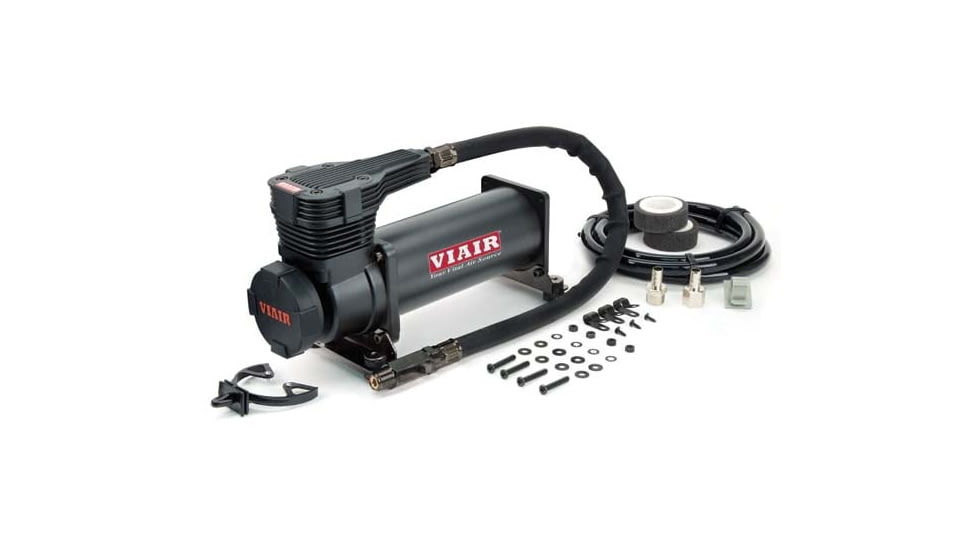

• 485C Stealth Black VIAIR Compressor w/ Thermal Overload Protector
• Digital Tire Inflation Gun with 180 PSI Gauge
• 30ft. Inside Braided Black Coil Hose with Quick Connects
• 1/4 NPT Quick Connect Stud (F)
• 1/4 NPT Quick Connect Coupler (F)

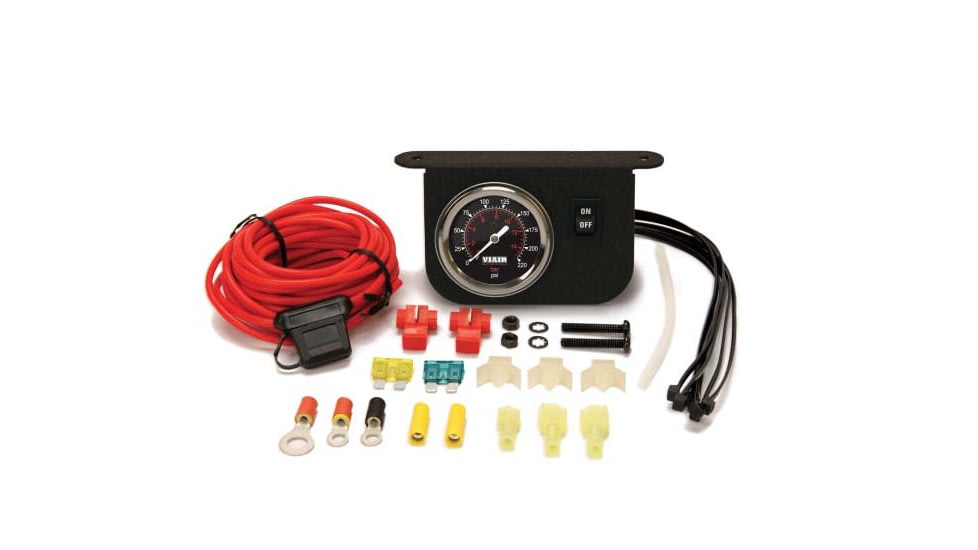

• Dash Panel Gauge with ON/OFF Switch
• Sealed Pressure Switch (165 PSI on, 200 PSI off)
• Reducer 1/8 NPT (F) to 1/4 NPT (M)
• Reducer 3/8 NPT (F) to 1/4 NPT (M)
• 1/4 NPT 250 PSI Safety Valve
• 1/4 NPT Drain Cock
• (3) 1/4 NPT Compression Fittings
• 4 Strip of Grommet Material
• 20ft. 12-Gauge Wire with Inline Fuse Holder
• Electrical Connections
• Accessory Airline
• Permanent Magnetic Motor
• Duty Cycle: 100% @ 200 PSI
• Max. Working Pressure: 200 PSI
• Max. Air Tank Size: 5.0 Gallon
• Max. Amp Draw: 23-Amps
• Ingress Protection Rating: IP67

Package Contents:

• VIAIR Continuous Duty Onboard Air System
