VIAIR Dual 280C Onboard Air System 20011,
Tap Tap to Zoom
Product Discontinued by Manufacturer
VIAIR Dual 280C Onboard Air System has been discontinued by VIAIR and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Camp & Hike, Boating & Marine, Camping Essentials, Air Compressors & Pumps yourself to try and find the perfect replacement for you!
Product Info for VIAIR Dual 280C Onboard Air System

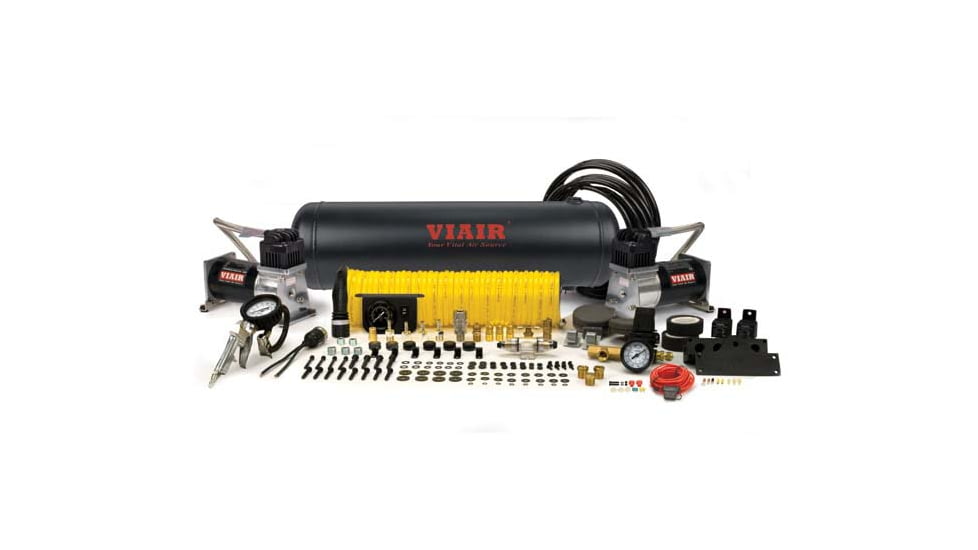

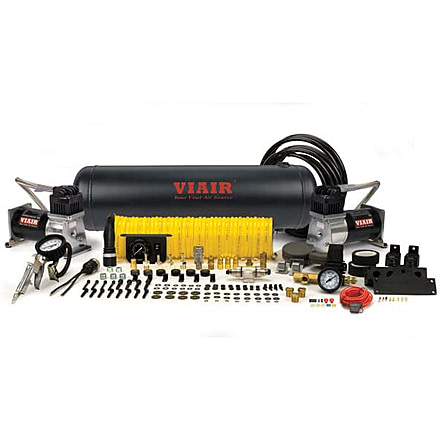

Dual 280C Onboard Air System (2.96 CFM 150 PSI 33 Amp 12V 2.5 Gal. Tank). VIAIRs Dual 280C Onboard Air System is a pre-packaged compressed air solution that provides two 280C, 30% duty cycle compressors, a 2.5 gallon air tank, an inline pressure regulator, and all necessary components needed to install a working system, useful for multiple pneumatic applications.
Features of VIAIR Dual 280C Onboard Air System
- 2.5 Gallon 150 PSI VIAIR Air Tank
- (2) 280C VIAIR Compressors w/Thermal Overload Protectors
- 30ft. Coil Hose with Quick Connects
- Tire Inflation Gun with 200 PSI Gauge
- 0-220 PSI Pressure Regulator
- Sealed Pressure Switch (110 PSI on, 145 PSI off)
- 150 PSI Illuminated Dash Panel Gauge
- (2) 40-Amp Relays
- Inline Fuse Holder
- 1/4 Quick Connect Coupler (M)
- 1/4 175 PSI Safety Valve
- 1/4 Drain Cock
- (2) 1/8 BSP to 1/4 NPT
- (4) 1/4 Compression Fittings
- 5pc. 1/4 NPT Plugs Kit
- 6-Port Billet Manifold with Mounting Bracket (1/4)
- (2) 20ft. 1/4 Air Line Included
- Electrical Connections
- Permanent Magnetic Motor
- Duty Cycle: 30% @ 100 PSI
- Max. Working Pressure: 150 PSI
- Max. Amp Draw: 33-Amps
- Ingress Protection Rating: IP54
Package Contents:
- VIAIR Dual 280C Onboard Air System
Be the first to review this product
VIAIR Dual 280C Onboard Air System Unavailable & Discontinued Models
List of Unorderable Models
- VIAIR Dual 280C OBA, for up to 35in Tires, 20011 , MPN: 20011 , Code: 4ZZ-COM-VAD280COA-20011
