VIAIR High-Speed Jeep JK Compressors 30001,

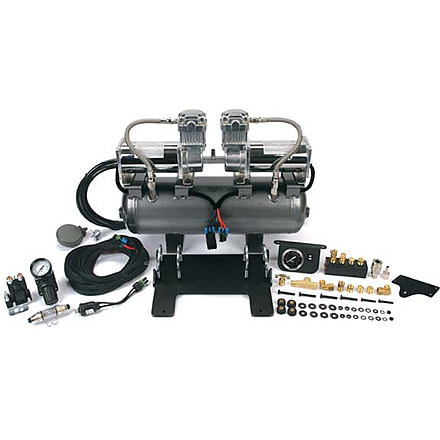

150 PSI High Speed 2 On 2's JK (2007~2011) Two 400C's On 2.0 Gal. Tank, w/Crossmember Bracket. Using two high output compressors mounted to a 2.0 gallon, 5-port air tank all required components are included to allow the installation of a high speed onboard air system that provides 150 PSI maximum pressure. Available as a model-specific bolt-on application for 2007-2011 Jeep JK with a crossmember mounting bracket 2on2 systems all come complete with an easy-to-install wiring harness and manifold to make wiring and plumbing the system straightforward.

Features of VIAIR High-Speed Jeep JK Compressors

• Permanent Magnetic Motor
• Duty Cycle: 33% @ 100 PSI
• Max. Working Pressure: 150 PSI
• Max. Amp Draw: 60 Amps
• Ingress Protection Rating: IP67
• 2.0 Gallon 5-Port Air Tank
• (2) 400C Air Compressors w/Thermal Overload Protectors
• (2) 1/4 Stainless Steel Braided Leader Hoses
• (2) 1/4 JIC Fittings on Leader Hoses
• 1/4 NPT Swivel to 1/4 NPT Swivel
• T-Fitting (Remote Mount Filter)
• 1/4 NPT Drain Cock
• Sealed Pressure Switch with Delphi Connectors (110 PSI On, 145 PSI Off)
• (2) Loomed Compressor Wires Terminated with Delphi Connectors
• Inline Fuse Holder with Fuse
• 1/4 NPT Safety Valve
• (4) 1/4 NPT M Recessed Plugs

Package Contents:

• VIAIR High-Speed Jeep JK Compressors
• Crossmember Mounting Bracket
• 60-amp Fuse & Fuse Holder
• 80-amp Relay
• (2) 1/4 BSP Adapters for Air Lockers
• T-Fitting 1/4? NPT F x 1/4? NPT F x 1/4? NPT M
• 1/8? to 1/4? NPT Reducer
• Wiring Harness with Delphi Connectors
• (2) Delphi Connector Plug Kits
• Billet 1/4 NPT x 6-Port Manifold and Mounting Bracket
• Air Filter Housing with Installed Element
• (2) Replacement Air Filter Elements
• Dash Panel Air Pressure Gauge (0-160 PSI Illuminated)
• Air Pressure Regulator
• 15ft. DOT Air Line
