Product Discontinued by Manufacturer
VIAIR Quarter Duty Cycle Onboard Air System has been discontinued by VIAIR and is no longer available. Our product experts have helped us select these available replacements below.You can also explore other items in the Camp & Hike, Boating & Marine, Camping Essentials, Air Compressors & Pumps yourself to try and find the perfect replacement for you!
Product Info for VIAIR Quarter Duty Cycle Onboard Air System

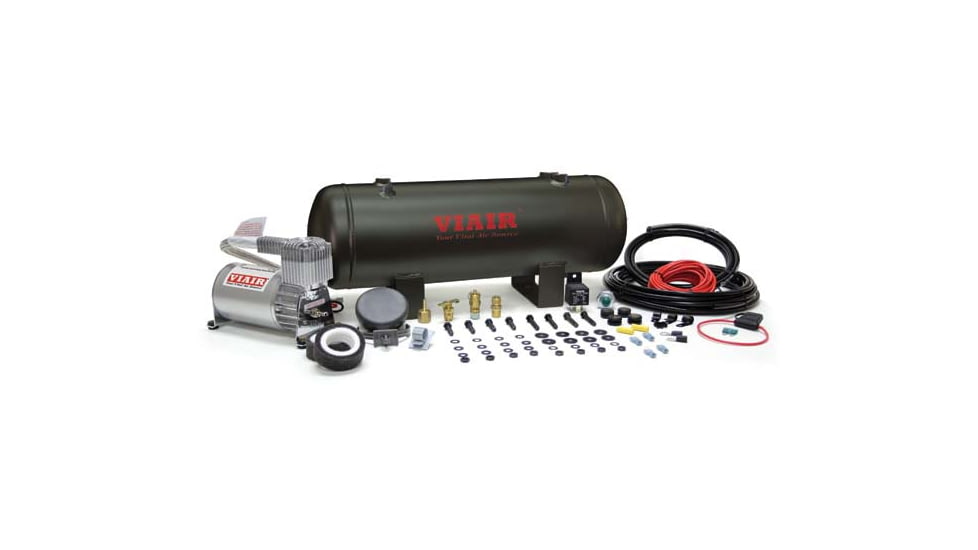

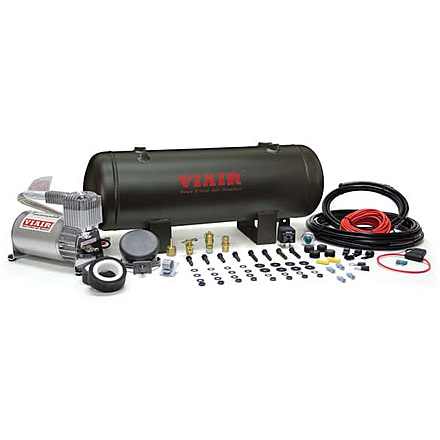

Quarter Duty Onboard Air System (12V, 120 PSI Compressor, 2.0 Gal. Tank). Quarter Duty Cycle Onboard Air System is a smaller, 120 psi onboard air system, suitable for many pneumatic needs, including smaller inflation tasks (not including the inflation of automotive tires), air horns and more. The 25% Duty Cycle Onboard Air System will provide enough service time to operate for about 10 minutes of continued use, providing you give the system 30 minutes to cool down afterwards.
Features of VIAIR Quarter Duty Cycle Onboard Air System
- 2.0 Gallon VIAIR Air Tank
- 275C VIAIR Air Compressor w/Thermal Overload Protector
- Pressure Switch (90 PSI on, 120 PSI off)
- 40-Amp Relay
- 1/4 NPT 145 PSI Safety Valve
- 1/4 Drain Cock
- 1/4 Compression Fitting
- 20ft. 16 Gauge Wire with Inline Fuse Holder
- Accessory Airline
- Electrical Connections
- Permanent Magnetic Motor
- Duty Cycle: 25% @ 100 PSI
- Max. Working Pressure: 120 PSI
- Max. Amp Draw: 18-Amps
- Ingress Protection Rating: IP54
Package Contents:
- VIAIR Quarter Duty Cycle Onboard Air System
Be the first to review this product
VIAIR Quarter Duty Cycle Onboard Air System Unavailable & Discontinued Models
List of Unorderable Models
- VIAIR Quarter Duty Cycle Onboard Air System, for Air Horns & Air Lockers, 10002 , MPN: 10002 , Code: 4ZZ-COM-VAQDCOA-10002
